COMEDK · Physics · 13. Thermodynamics
A gas is taken through the cycle \(A \rightarrow B \rightarrow C \rightarrow A\), as shown in figure. What is the net work done by the gas?
- A \(2000 \mathrm{~J}\)
- B \(1000 \mathrm{~J}\)
- C Zero
- D \(-2000 \mathrm{~J}\)
Answer & Solution
Correct Answer
(B) \(1000 \mathrm{~J}\)
Step-by-step Solution
Detailed explanation
Net work done by the gas \(=\) Area enclosed in \(p-V\) curve, i.e. area of \(\triangle A B C\). \(W_{\text {net }}=\frac{1}{2} \times 5 \times 10^{-3} \times 4 \times 10^5 \mathrm{~J}=10^3 \mathrm{~J}=1000 \mathrm{~J}\)
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- Temperature coefficient of resistance of platinum is \(4 \times 10^{-3} / \mathrm{K}\) at \(20^{\circ} \mathrm{C}\). Temperature at which increase in resistance of platinum is \(10 \%\) its value at \(20^{\circ} \mathrm{C}\) isCOMEDK 2016 Hard
- A compound slab is made of two parallel plates of copper and brass of the same thickness and having thermal conductivities in the ratio \(4: 1\). The free face of copper is at \(0^{\circ} \mathrm{C}\). The temperature of the interface is \(20^{\circ} \mathrm{C}\). What is the temperature of the free face of brass?COMEDK 2020 Hard
- Two conducting spherical shells A and B of radii 4 cm and 6 cm respectively are placed with their centres 17 cm apart in air. Initially, sphere A was given a \(-20\) nC charge while sphere B was uncharged. The spheres are then connected by a long thin conducting wire and allowed to reach electrostatic equilibrium. Assuming no charge is lost to the surroundings, the final charge on sphere A and the ratio of magnitude of electric field intensity at the surface of sphere B to that of sphere A is given by:COMEDK 2026 Medium
- A bar magnet is equivalent toCOMEDK 2019 Medium
- An intrinsic semiconductor has equal concentrations of hole and electron which is equal to \(4 \times 10^8 \mathrm{~m}^{-3}\). During its conversion to extrinsic semiconductor, concentration of hole increases to \(8 \times 10^{10} \mathrm{~m}^{-3}\). The new electron concentration is:COMEDK 2025 Easy
- The temperature of an object is \(60^{\circ} \mathrm{C}\). Its value in Fahrenheit scale isCOMEDK 2014 Easy
More PYQs from COMEDK
- Several lamps of \(50 \mathrm{~W}\) and \(100 \mathrm{~V}\) rating are available. How many of them can be connected in parallel across a battery of a \(120 \mathrm{~V}\) of internal resistance \(10 \Omega\), so that all bulbs glow in full power?COMEDK 2015 Medium
- Three charges \(-q,+Q\) and \(-q\) are placed at equal distances along a straight line. If the total \(P E\) of the system is zero, then the ratio \(Q / q\) becomesCOMEDK 2014 Easy

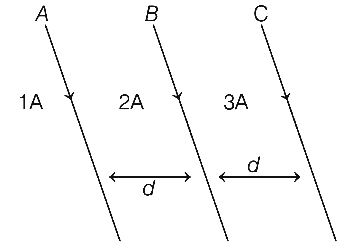

- Three long straight wires \(A, B\) and \(C\) are carrying currents as shown in figure, then the resultant force on \(B\) is directed
