AP EAMCET · PHYSICS · Capacitance
One of the two identical capacitors having the same capacitance C, is charged to a potential \(\mathrm{V}_1\) and the other is charged to a potential \(\mathrm{V}_2\). If they are connected with their like plates together, then the decrease in the electrostatic potential energy of the combined system is
- A \(\frac{\mathrm{C}}{4}\left(\mathrm{~V}_1^2-\mathrm{V}_2^2\right)\)
- B \(\frac{C}{4}\left(V_1^2+V_2^2\right)\)
- C \(\frac{C}{4}\left(V_1-V_2\right)^2\)
- D \(\frac{\mathrm{C}}{4}\left(\mathrm{~V}_1+\mathrm{V}_2\right)^2\)
Answer & Solution
Correct Answer
(C) \(\frac{C}{4}\left(V_1-V_2\right)^2\)
Step-by-step Solution
Detailed explanation
\(U_{initial} = \frac{1}{2}CV_1^2 + \frac{1}{2}CV_2^2\) \(Q_{total} = CV_1 + CV_2\) \(V_{final} = \frac{CV_1 + CV_2}{C+C} = \frac{V_1 + V_2}{2}\) \(U_{final} = \frac{1}{2}(2C)\left(\frac{V_1 + V_2}{2}\right)^2 = \frac{C}{4}(V_1 + V_2)^2\)…
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from PHYSICS
- Assertion (A) When a circular coil. placed in a region with its place parallel to a magnetic field, expands radially outwards, no emf is induced in it.
Reason (R) There is a constant magnet field in the perpendicular (to the plane of the coil) direction.AP EAMCET 2022 Easy - A travelling micros dot marked on a pi slab \((\mu=1.5)\) of thic the ink dot. The tra be moved in focus.AP EAMCET 2020 Hard
- The centre of mass of three particles of masses \(1 \mathrm{~kg}, 2 \mathrm{~kg}\) and \(3 \mathrm{~kg}\) is at \((2,2,2)\). The position of the fourth mass of \(4 \mathrm{~kg}\) to be placed in the system as that the new centre of mass is at \((0,0,0)\) is.AP EAMCET 2005 Easy

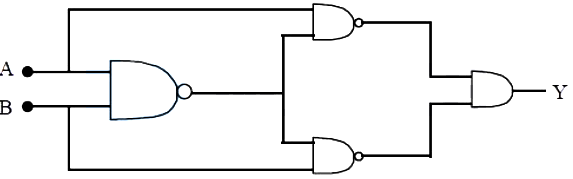

- To have the output \(\mathrm{Y}=1\), the possible combinations of inputs are
