AP EAMCET · PHYSICS · Electromagnetic Induction
A conducting rod of length \(L\) rotates with angular speed \(\omega\) in a uniform magnetic field of induction \(B\) which is perpendicular to its motion. The induced emf developed between the two ends of the rod is
- A \(\frac{B L^2 \omega}{4}\)
- B \(\frac{B L^2 \omega}{2}\)
- C \(B L^2 \omega\)
- D \(2 B L^2 \omega\)
Answer & Solution
Correct Answer
(B) \(\frac{B L^2 \omega}{2}\)
Step-by-step Solution
Detailed explanation
Linear velocity of the rod \(v=r \omega=\frac{L \omega}{2}\) \(\therefore \quad\) Induced emf \[ e=B v L=B \times \frac{L \omega}{2} L=\frac{1}{2} B \omega L^2 \]
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from PHYSICS
- A spherical ball of volume \(2000 \mathrm{~cm}^3\) is subjected to a hydraulic pressure of \(15 \mathrm{~atm}\). If the change in volume is \(5 \times 10^{-2} \mathrm{~cm}^3\), the bulk modules of the material of the spherical ball is
\(\left(1 \mathrm{~atm}=10^5 \mathrm{Nm}^{-2}\right)\)AP EAMCET 2023 Easy - A bullet strikes against a wooden block and is embedded in it, the nature of collision isAP EAMCET 2020 Easy
- Two particles \(P\) and \(Q\) describe SHM of same amplitude \(a\) and same frequency \(f\) along the same straight line. The maximum distance between the two particles is \(a \sqrt{2}\). The phase difference between the particle isAP EAMCET 2021 Medium
- An air bubble of radius \(1 \mathrm{~cm}\) rises from the bottom portion through a liquid of density \(1.5 \mathrm{~g} / \mathrm{cc}\) at a constant speed of \(0.25 \mathrm{~cm} \mathrm{~s}^{-1}\). If the density of air is neglected, the coefficient of viscosity of the liquid is approximately, (In Pas) :AP EAMCET 2006 Medium
- The escape velocity of a body on the earth's surface is \(v_e\).A body is thrown up with a speed \(\sqrt{5} v_e\).Assuming that the sun and planets do not influence the motion of the body, velocity of the body at infinite distance, is :AP EAMCET 2004 Easy
- An electromagnetic wave of frequency \(\mathrm{I} \times 10^{14} \mathrm{~Hz}\) is propagating along \(\mathrm{z}\)-axis. The amplitude of electric field is \(4 \mathrm{Vm}^{-1}\), then energy density of the electric field will be (Permittivity of free space \(=8.8 \times 10^{-12} \mathrm{C}^2 \mathrm{~N}^{-1} \mathrm{~m}^{-2}\) )AP EAMCET 2019 Easy
More PYQs from AP EAMCET
- It is possible to project a particle with a given velocity in two possible ways so as to make them pass through a point \(p\) at a horizontal distance \(r\) from the point of projection. If \(t_1\) and \(t_2\) are times taken to reach this point in two possible ways, then the product \(t_1 t_2\) is proportional toAP EAMCET 2012 Easy
- In which of the following pairs the polymer is correctly matched with the forces possessed by them.
A. Neoprene --- Weak intermolecular forces
B. Terylene --- Hydrogen bonding
C. Polystyrene ---- Very weak intermolecular forces
D. Polythene --- Hydrogen bondingAP EAMCET 2023 Easy - \(\int(\log 2 \mathrm{x})^3 \mathrm{dx}=\)AP EAMCET 2025 Medium
- The spectral series formed when electrons of excited hydrogen atoms return to the third orbit from higher energy orbits isAP EAMCET 2022 Easy
- The rate of a reaction doubles, when the temperature is changed from \(300 \mathrm{~K}\) to \(310 \mathrm{~K}\). Activation energy of the change is....... \(\left(R=8.314 \mathrm{~J} \mathrm{~K}^{-1} \mathrm{~mol}^{-1}, \log 2=0.301\right)\)AP EAMCET 2022 Easy

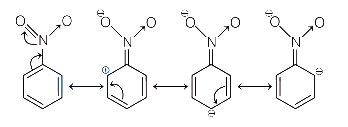

- The \(-\mathrm{NO}_2\) in the following conjugated system shows
